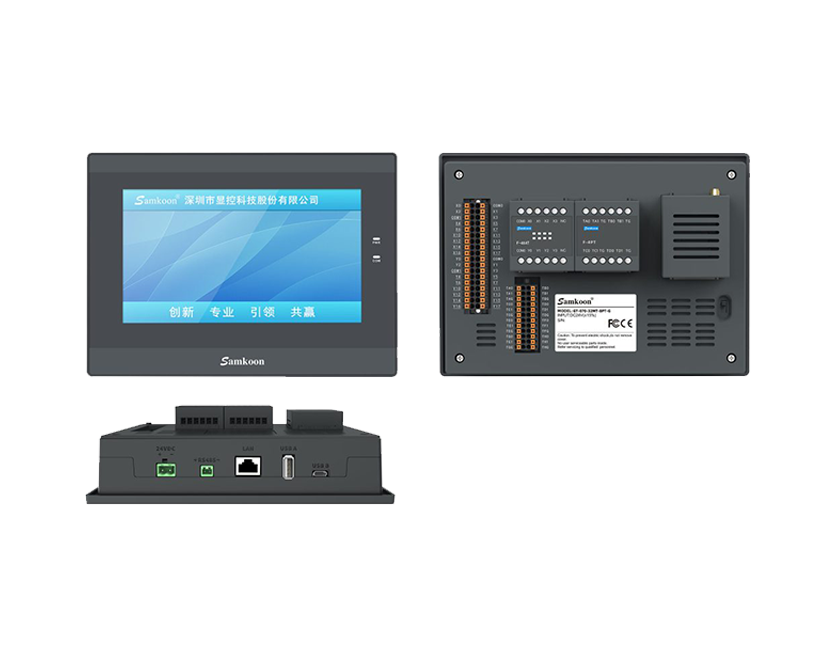

GT-70-32MT

7-inch widescreen TFT LCD, 1024×600 resolution, resistive touchscreen.

Integrated PLC with 16 digital inputs and 16 transistor outputs.

4 high-speed pulse outputs (200 kHz) and 4 fast counters.

Two AB phase encoder inputs (200 kHz) for motion control.

Supports expansion modules: digital, analog, temperature I/O.

Communication: RS-485, Ethernet, USB, USB host.

IP65 front panel, size 204×148×45 mm, 24V DC input.

Dual-core Cortex-A7 CPU, 128MB Flash, 128MB DDR3 RAM.

Programmable via SKTOOL 7.1.
