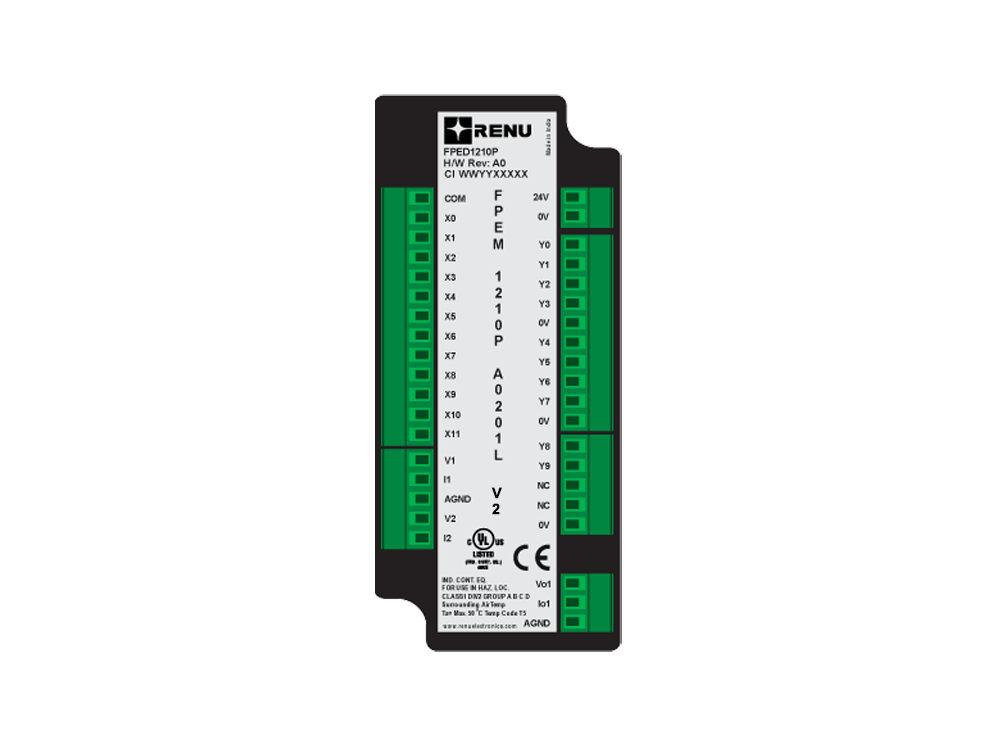

FPEM-1210P-A0201L-V2

Features

• Mixed I/O Module combining Digital and Analogue Inputs and Outputs
• Power from HMI
• 12 Bi-directional Type Digital Inputs (According to EN61131-2 Type 1)
• 10 Digital Outputs (2 PNP Type)
• 2 Analogue Inputs
• 1 Analogue Output
• Nominal Input Voltage 24VDC
• 2 pair High Speed Inputs 200KHz
• Nominal Output Voltage (PNP) 24VDC
• Nominal Output Current 250mA @ 24VDC
• Max. O/P frequency 1kHz
• 2 x Analogue Inputs each configurable for 0-20mA, 4-20mA & 0-10VDC, 0-5VDC (16 bit resolution)
• 1 X Analogue Output configurable for 0-20mA, 4-20mA & 0-10VDC, 0-5VDC (12 bit resolution)
• CE marked and UL Listed
