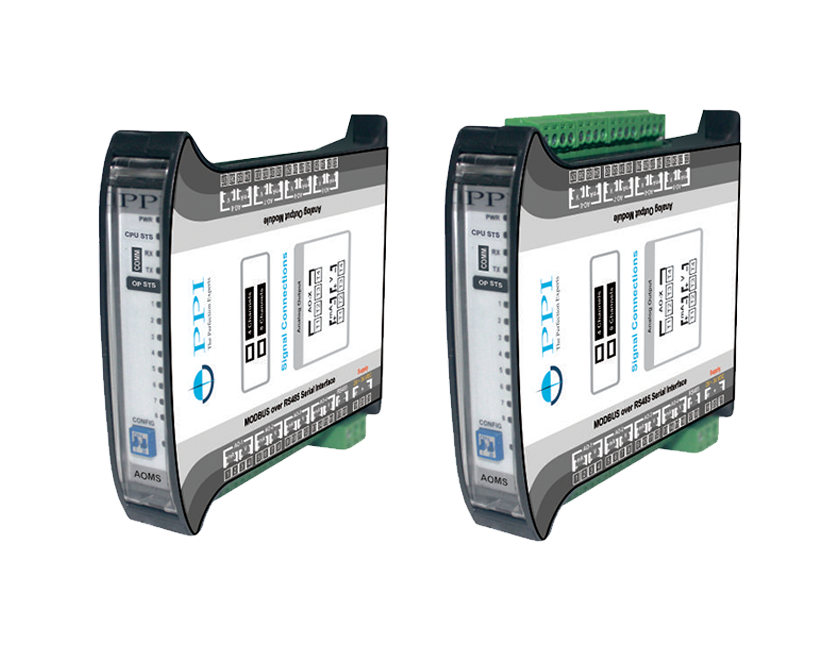

AOMS-4U

4 analog output channels, independently programmable.

Supports current (0-20mA, 4-20mA, 0-10mA) and voltage (0-5V, 1-5V, 0-10V).

14-bit output resolution.

Programmable min/max counts for signal range.

Supports MODBUS coils & bit-mapped registers.

2-wire, half-duplex RS485 serial communication.

MODBUS RTU protocol with configurable ID, baud rate, parity.

Supply voltage: 18–32 VDC (24 VDC nominal).
