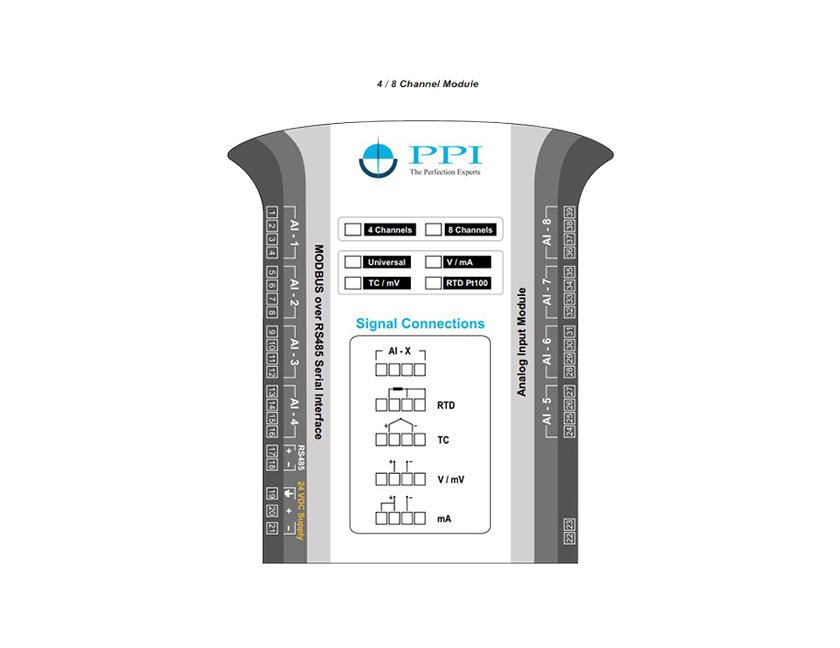

AIMS-4U

4 channels configurable for thermocouples, RTD Pt100, volts, mV, and mA.

No jumper settings needed.

16-bit Sigma-Delta ADC (±32,768 counts).

Automatic CJC for thermocouples, LRC for RTDs.

4 programmable soft alarms per channel with LED indicators.

Fast channel update rate.

3-way isolation (power, inputs, RS485) to prevent ground loops.

2-wire, half-duplex RS485 with MODBUS RTU protocol.

Supply voltage: 18–32 VDC (24 VDC nominal).
